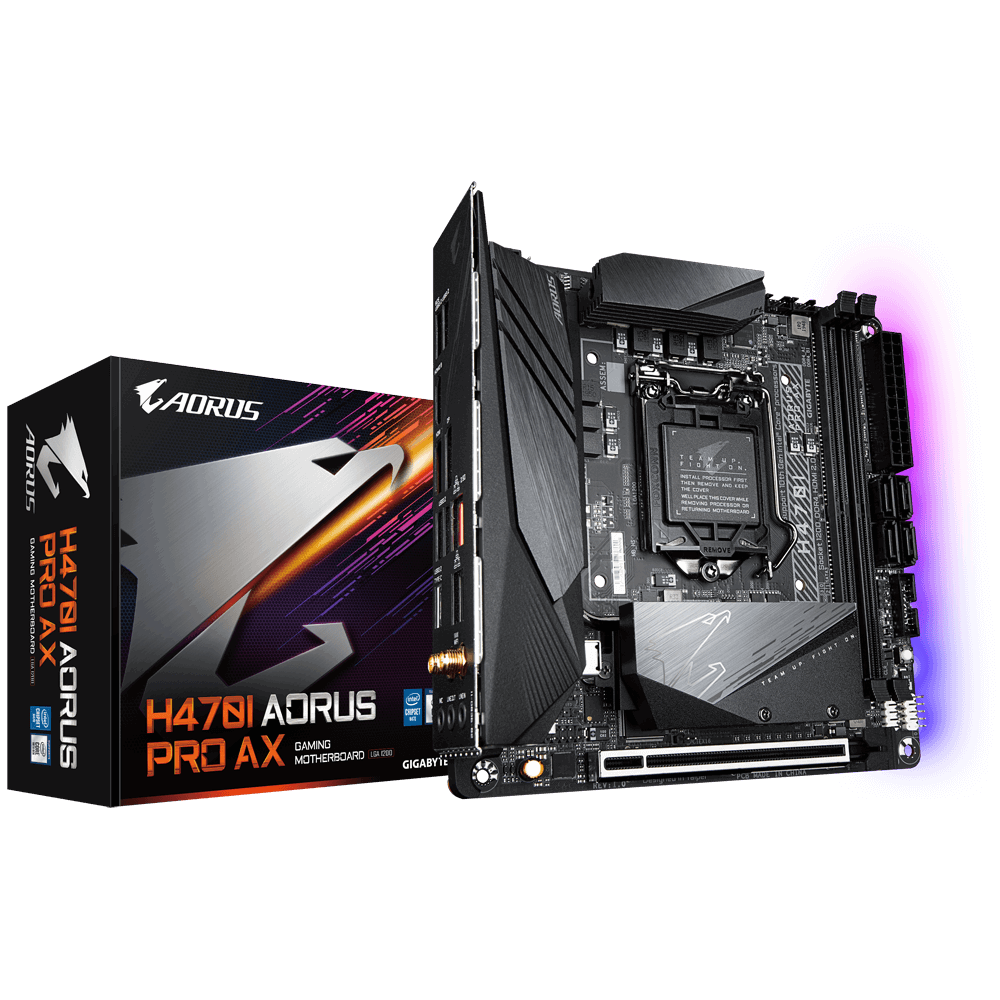

Gigabyte H470I AORUS PRO AX

Thương hiệu: Khác
| |
4,990,000₫ 5,550,000₫

Gigabyte H470I AORUS PRO AX Motherboard with Direct 5+1 Phase Digital VRM Design solution with DrMOS, Thermal Baseplate, Intel® WiFi 6 802.11ax, Dual Intel® LAN, HDMI 2.0, RGB FUSION 2.0

♦Supports 10th Gen Intel® Core™ Series Processors
♦Direct 5+1 Phase Digital VRM Design solution with DrMOS
♦Dual Channel Non-ECC Unbuffered DDR4, 2DIMMs
♦Extended MOSFET Heatsink and Multi-layered PCH M.2 heatsink with heatpipes and thermal ♦baseplate
♦Supreme flexibility with Intel® Optane memory ready
♦Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
♦Blazing Fast Dual LAN Intel® 2.5GbE LAN and Intel® GbE LAN with cFosSpeed
♦HDMI 2.0 supports premium 4K resolution
♦Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
♦ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio ♦Capacitors
♦RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED ♦& RGB LED Strips
♦Pre-installed IO Shield for easy and quick installation
♦Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Tiêu đề
Hotline bán hàng 24/7: 02822498777 02822498777
|
Số lượng

H470I AORUS PRO AX (rev. 1.0)
CPU
  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  2. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Socket
Socket 1200
Chipset
  1. Intel® H470 Express Chipset
Bộ nhớ
  1. Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor+PARADE PS175 chip:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version, HDCP 2.3, and HDR.
Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Maximum shared memory of 512 MB
Âm thanh
  1. Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
  1. 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
  2. 1 x Intel® GbE LAN chip (1 Gbit/100 Mbit) (LAN1)
Khe cắm mở rộng
  1. 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Giao diện lưu trữ
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
  2. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M2Q_SB)
  3. 4 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB
Chipset:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support
  2. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  3. 2 x USB 2.0/1.1 ports available through the internal USB header
Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 4 x SATA 6Gb/s connectors
  8. 2 x M.2 Socket 3 connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x speaker header
  12. 1 x USB 3.2 Gen 1 header
  13. 1 x USB 2.0/1.1 header
  14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)v
  15. 1 x Clear CMOS jumper
  16. 1 x chassis intrusion header
  17. 1 x Q-Flash Plus button
Kết nối bảng phía sau
  1. 1 x DisplayPortv
  2. 2 x HDMI ports
  3. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  4. 4 x USB 3.2 Gen 1 ports
  5. 2 x RJ-45 ports
  6. 2 x SMA antenna connectors (2T2R)
  7. 3 x audio jacks
Operating System
  1. Support for Windows 10 64-bit
Hệ số khuôn
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
