Official Website: www.jonsbo.com/en/products_32_3.html

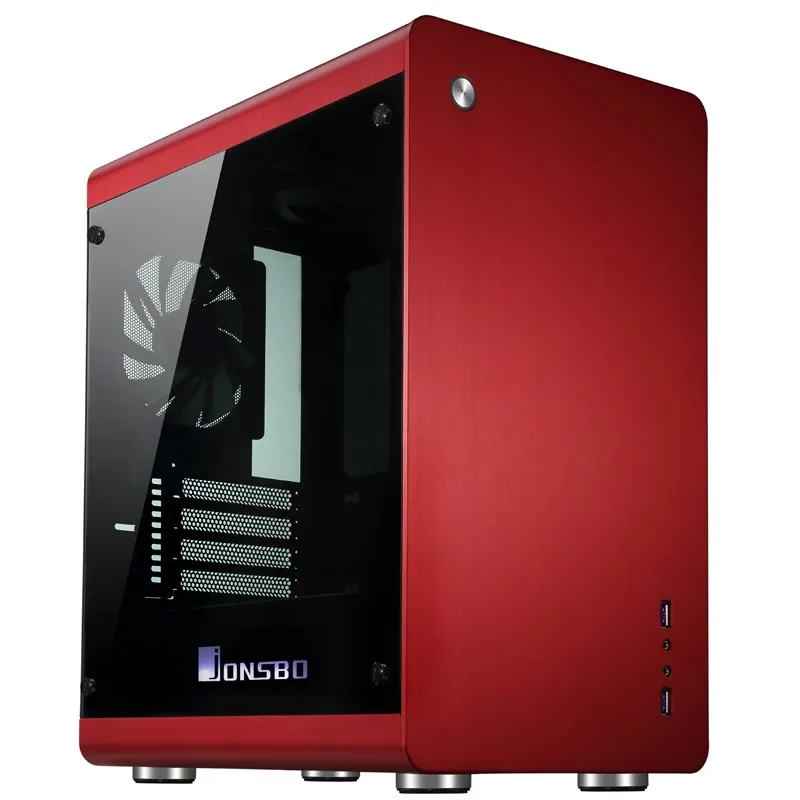

The hot hatch to own for every DIYer
The outer shell of RM3 is fully made from aluminum magnesium Alloy, with Jonsbo team’s accumulated experience of wiredrawing anode surface processing craft from many years, the design style goes on with the sense of simplicity, simple streamline and strong metallic.By using outer aluminum and inner steel with innovative structural joining technology, it perfectly fuses the strong structure and good appearance of the product.Fully tempered glass used in automobile industry is used for making the transparent side panel of RM3, it not only provides wide-angle display for illuminated hardware but also brings an unexpected solution for isolating noise and resonance.
5mm thick fully tempered glass used in automobile industry is used, it can not only effectively isolate the noise and resonance created by the fans, but also provide wide-angle display for illuminated hardware.
RM3 supports 310 mm length display card and 170mm height CPU radiator, almost all mainstream high-end display cards and air-cooled CPU radiators are supported. The requirements of small size and high performance have been further implemented.
RM3 provides independent cooling channels for display card, CPU and PSU. 3 Jonsbo high quality silent fans are built-in, they will provide sufficient air flow for the expensive hardware.
RM3 implements all those good detailed design elements which are absent in other small size cases, such as wire management at the back of motherboard, PSU installed on the bottom, SSD displayed from side panel and personalized lighted LOGO nameplate.
Dimension:215MM (W) * 336MM (D) * 385MM (H)
Material: Internal Structure :1.0mm SGCC Steel Plate , Front Plate:4.0MMAluminum , Side Plates: 5.0mm Tempered Glass Side Plate ;
Back/Top/Bottom Plate: 1.5+2.0mm Aluminum
Motherboard: MATX / ITX (Within 245mm x 245mm)
Drive Bay: 2*3.5'', 3*2.5'' Or 5*2.5''
Cooling System: Back/Bottom:1 x 120mm fan
CPU Cooler: Not higher than 170MM
Display Card: Not longer than 310MM(Not longer than 285mm if HDD is istalled)
Front I/O: USB3.0 × 2, Audio × 1, Mic × 1
Power Supply: Standard ATX PS2
Expansion Slot: 4
NET/Gross Weight: 7.3kg / 9.5kg
Design and Features
1. It is made from aluminum magnesium alloy, the thickness of the front panel achieves 4mm.
2. Both side panels are made from 5 mm tempered glasses, the glasses are derived from the material of automobile industry, they are impact-resistant and scratch-proof.
3. Hardware can be shown from the full transparent side panels.
4. The net weight of the case is 7.3kg, it really shows how good the material have been used.
5. Built-in 3 Jonsbo dedicated quiet fans, supporting 120 mm liquid cooler.
6. There are a 17mm height of spacing for wire management, a wire storage bin for hiding exceed wires and 8 wire protection grommets.
7. There are 8pcs of 1.5mm shock absorption silicon pads between the contact areas of both side panels and the body, they play a decisive role for isolating the noise.
8. Dense small holes dust filters are used on the back and base plates of RM3 in order to isolate the fine dust, and the dust filters can be removed to clean.
9. Innovative lighted LOGO nameplate, users can change it according to their own favor.
