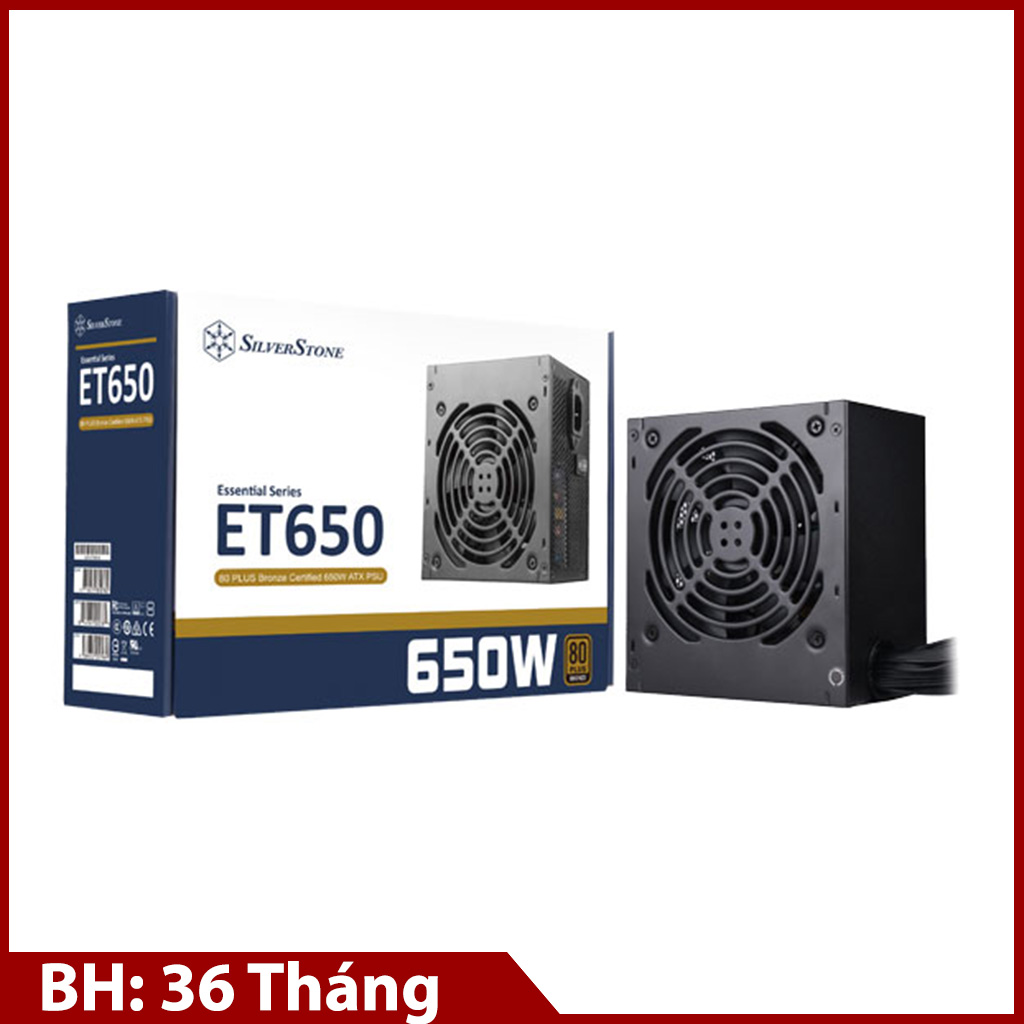

Nguồn Silver Stone Essential ET650-B 650W (80 PLUS Bronze)

ĐẶC ĐIỂM NỔI BẬT

Thông số kỹ thuật:

Hãng sản xuất:	SilverStone
Model:	SST-ET650-B
Max. DC Output	650W
Power density	360W per liter
Color	Black（Lead-Free Paint）
Combined +3.3V & +5V	120W
Combined +12V	600W
Input Voltage	100 ~ 254 Vrms
Input Frequency Range	47Hz ~ 63Hz
PFC	Active PFC（PF>0.9 at full load）
Efficiency	82% ~ 85% @ 20% ~ 100% loading
MTBF	100,000 hours
Operating temperature	0°C ~ 40°C
Protection	Over current protection Over power protection Over voltage protection Short circuit protection Over temperature protection
Connectors	V1.1 1 x 24 / 20-Pin motherboard connector（500mm） 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 4 x 8 / 6-Pin PCIE connector（"500mm / 150mm" x 2） 6 x SATA connector（"500mm / 150mm / 150mm" x 2） 3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm） 1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm） V1.4 1 x 24 / 20-Pin motherboard connector（500mm） *1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm) 4 x 8 / 6-Pin PCIE connector（"500mm / 150mm" x 2） 6 x SATA connector（"500mm / 150mm / 150mm" x 2） 3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm） 1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）
Cooling System	Single 120mm silent fan
Form factor	ATX
Noise Level	18dBA minimum
Dimension	150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D)
Weight	1.59 Kg
Certification	80 PLUS Bronze
Other	GPU Support list Compatible with ATX12V v2.4
