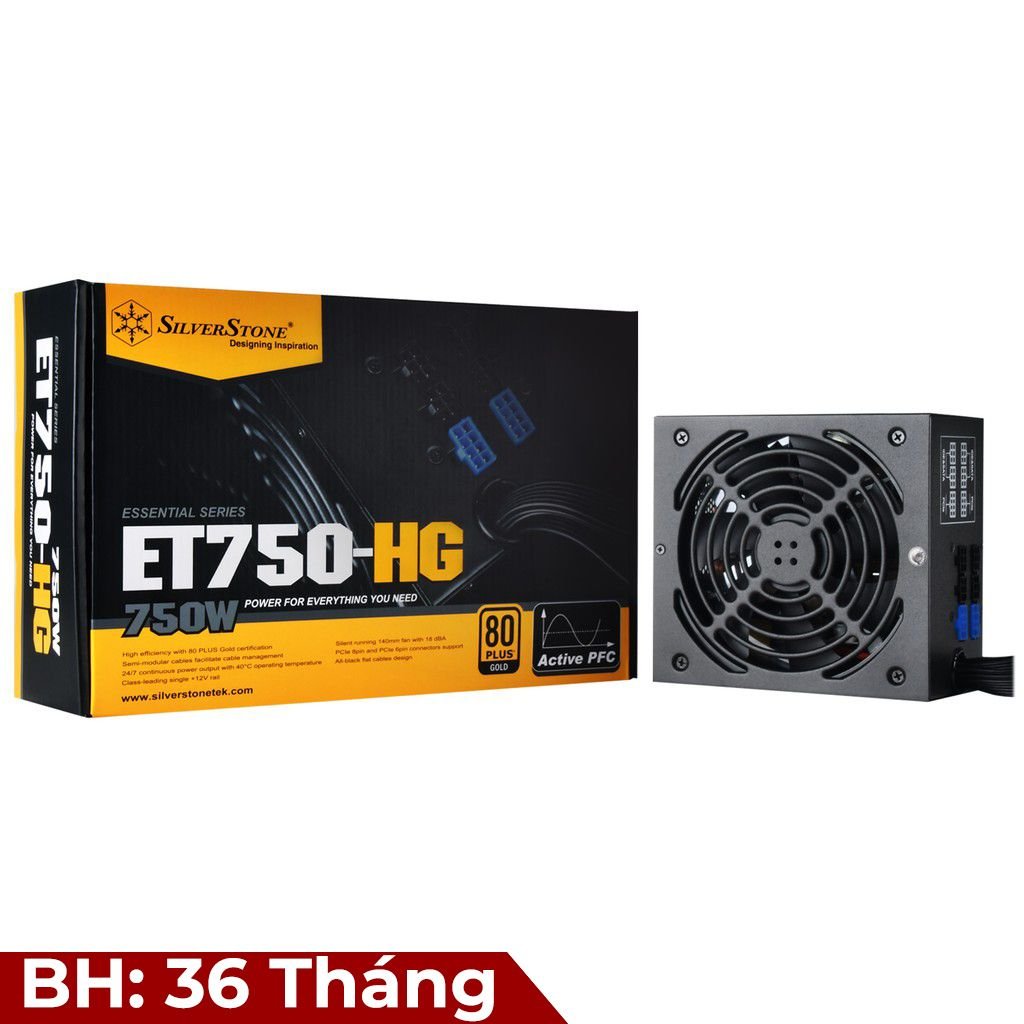

PSU SilverStone ET750-HG Semi Modullar 80 Plus Gold

Thương hiệu: SilverStone

Loại: PSU - Nguồn

2,250,000₫

Bài Review chi tiết trên tinh tế : TẠI ĐÂY

￭ High efficiency with 80 PLUS Gold certification

￭ Semi-modular cables facilitate cable management

￭ 24/7 continuous power output with 40°C operating temperature

￭ Class-leading single +12V rail

￭ Silent running 140mm fan with 18 dBA

￭ PCIe 8pin and PCIe 6pin connectors support

￭ All-black flat cables design

Remark

1.Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.		2.Built-in 140mm fan has excellent airflow and low noise, perfect for quiet home or office use.

Single 140mm silent fan

Semi-modular cables facilitate cable management

1 x 24 / 20-Pin motherboard connector

1 x 8 / 4-Pin EPS / ATX 12V connector

4 x 8 / 6-Pin PCIe connector

9 x SATA connector

3 x 4-Pin Peripheral connector

1 x 4-Pin Floppy connector

SPECIFICATIONS

Model No.

SST-ET750-HG

Max. DC Output

750W

Power density

363W per liter

Load Range

	+3.3V	+5V	+12V	+5VSB	-12V
Max.(Amps)	22A	22A	62A	2.5A	0.3A
Peak (Amps)	/	/	/	3.0A	/
Min.(Amps)	0A	0A	0A	0A	0A
Range (%)	±5%	±5%	±5%	±5%	±10%
Line Reg.(%)	±1%	±1%	±1%	±1%	±1%
Ripple(mVp-p)	50mA	50mA	120mV	50mV	120mV

Color

Black（Lead-Free Paint）

Combined +3.3V & +5V

120W

Combined +12V

744W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.9 at full load）

Efficiency

87% ~ 90% at 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over current protection
Over power protection
Over voltage protection
Short circuit protection

Connectors

1 x 24 / 20-Pin motherboard connector (500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2)
9 x SATA connector ("500mm / 150mm / 150mm" x 3)
3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)

Cooling System

Single 140mm silent fan

Form factor

ATX

Noise Level

18dBA minimum

Dimension

150 mm (W) x 86 mm (H) x 160 mm (D)
5.91" (W) x 3.39" (H) x 6.3" (D)

Weight

2 Kg

Certification

80 PLUS Gold
