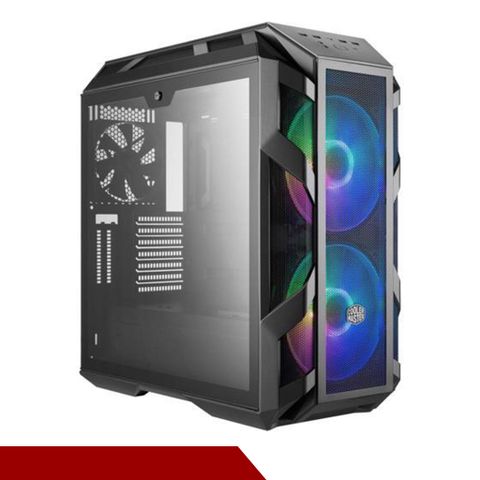

Case CM MasterCase H500M
Specifications
| Product Name | MasterCase H500M |
| Model Number | MCM-H500M-IHNN-S00 |
| Available Color | Iron Grey |
| Materials | Outlook: Steel Mesh, Glass Body: Steel Side panel: Tempered Glass |
| Dimensions (LxWxH) | 544 x 248 x 546mm / 21.4 x 9.8 x 21.5 inch |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (support upto 12" x 10.7") |
| Expansion Slots | 7 + 2 (Support vertical graphics card installation) |
| 5.25" Drive Bays | 0 |
| 2.5" / 3.5" Drive Bays | 2 |
| 2.5" SSD Drive Bays | 6 |
| I/O Port | USB 3.1 Type-C x 1 USB 3.0 Type-A x 4 Audio In & Out (supports HD Audio) |
| Pre-installed Fan(s) - Front | 200mm ARGB Fan x 2 (Speed: 800RPM / Connector: 3Pin + ARGB 3pin) |
| Pre-installed Fan(s) - Rear | 140mm fan x 1 (Speed: 1200RPM / Connector: 3Pin) |
| Fan Support - Top | 120 fan x 3 or 140mm/200mm fan x 2 |
| Fan Support - Front | 120/140mm fan x 3 or 200mm fan x 2 |
| Fan Support - Rear | 120/140mm fan x 1 |
| Liquid Cooling Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm (maximum thickness clearance 43mm) |
| Liquid Cooling Support - Front | 120mm, 140mm, 200mm, 240mm, 280mm, 360mm (70mm clearance w/radiator lid & M.portremoved) |
| Liquid Cooling Support - Rear | 120mm, 140mm |
| Clearance - CPU Cooler | 190mm |
| Clearance - Graphics Card | 412mm |
| Clearance - Power Supply | 200mm |
| Power Supply Support | Bottom Mount, ATX PS2 |
| EAN Code | 4719512072165 |
| UPC Code | 884102044663 |
