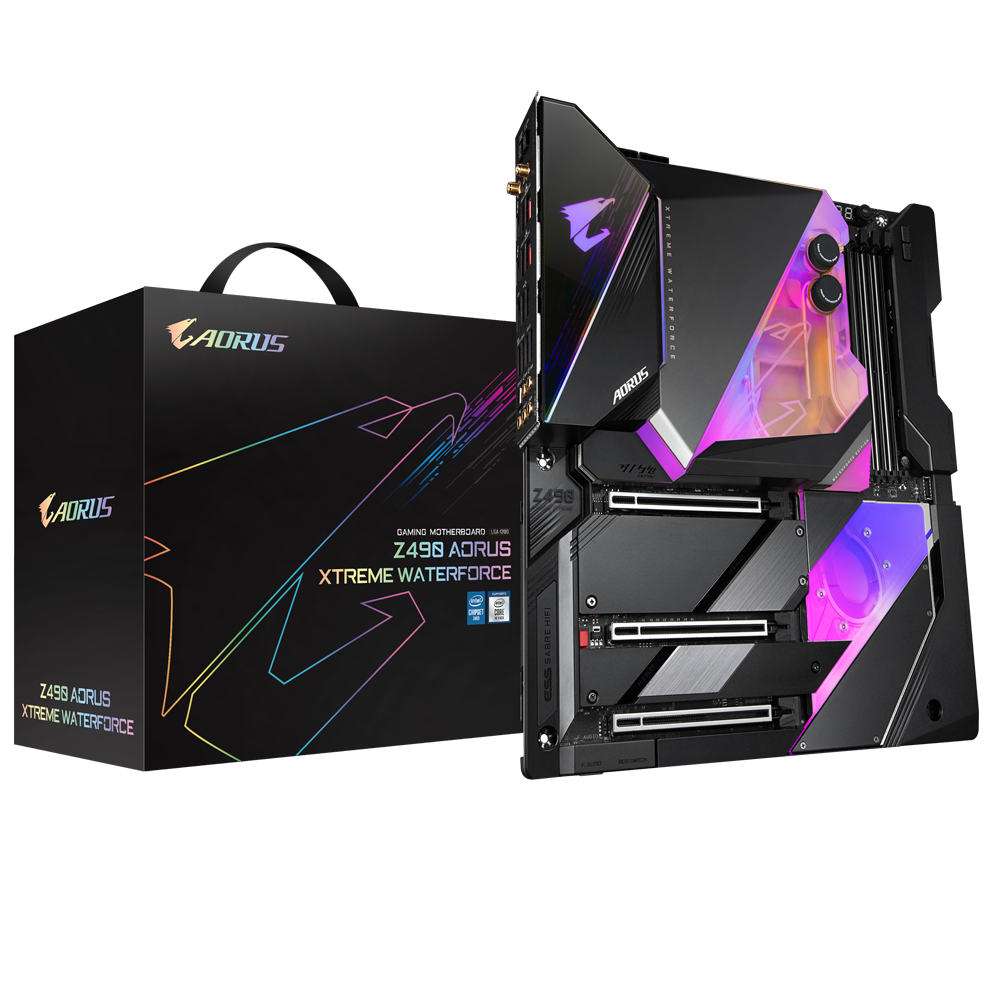

GIGABYTE Z490 AORUS XTREME WATERFORCE Motherboard with 16+1 Phases Digital VRM, AORUS All-In-One Monoblock ,NanoCarbon Baseplate, Intel Thunderbolt 3, ESSential USB DAC, Intel WiFi 6 802.11ax, AQUANTIA 10GbE LAN, Intel 2.5GbE LAN, RGB FAN COMMANDER
- Supports 10th Gen Intel Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel Optane™ Memory Ready
- 16+1 Phases Digital VRM Solution with 90A Smart Power Stage and Tantalum Polymer Capacitors Array
- XTREME MEMORY with SMT DIMM and Shielded Memory Routing
- AORUS All-In-One Monoblock for CPU, VRM, SSD and PCH
- Intel Thunderbolt™ 3 Onboard
- Exclusive ESSential USB DAC
- Exclusive RGB FAN COMMANDER for Professional Casemodders
- Onboard Intel WiFi 6 802.11ax 2T2R & BT 5 with 2X AORUS Antenna
- 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720 and OPA1622 OP-AMP, WIMA Audio Capacitors
- AQUANTIA 10GbE BASE-T LAN and Intel 2.5GbE LAN with cFosSpeed
- Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards II
- USB TurboCharger for Mobile Device Fast Charge Support
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
####
CPU | - Support for 10th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/ Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
- L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.) |
Chipset | Intel Z490 Express Chipset |
Memory | - Intel Core™ i9/i7 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz - Intel Core™ i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.) |
Onboard Graphics | Integrated Graphics Processor+Intel Thunderbolt™ 3 Controller:- 2 x Intel Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.) * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. Integrated Graphics Processor-Intel HD Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512 MB |
Audio | - Realtek ALC1220-VB codec+ESS ES9218P DAC (front panel audio)
- Realtek ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio)
- Support for DTS:X Ultra
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
LAN | - 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit//1 Gbit/100 Mbit) (LAN1)
- 1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
|
Wireless Communication module | Intel Wi-Fi 6 AX201- WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.1
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
|
Expansion Slots | - 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P_PCH connector. The PCIEX4 slot operates at up to x2 mode when an M.2 SSD is installed in the M2P_PCH connector. (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.) |
Multi-Graphics Technology | - Support for NVIDIA Quad-GPU SLI™ and 2-Way NVIDIA SLI™ technologies
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
|
Storage Interface | - 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors. - Intel Optane™ Memory Ready
|
USB | Chipset+Intel Thunderbolt™ 3 Controller:- 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support
Chipset:- 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers with the included front USB header extension cable)
|
Internal I/O Connectors | - 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 1 x water cooling kit CPU LED header (LED_CPU)
- 1 x water cooling kit Chipset LED header (LED_PCH)
- 4 x system fan headers
- 2 x system fan/water cooling pump headers
- 1 x noise detection header
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 6 x SATA 6Gb/s connectors
- 3 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 2 x temperature sensor headers
- 1 x power button
- 1 x reset button
- 1 x OC button
- 2 x BIOS switches
- Voltage Measurement Points
|

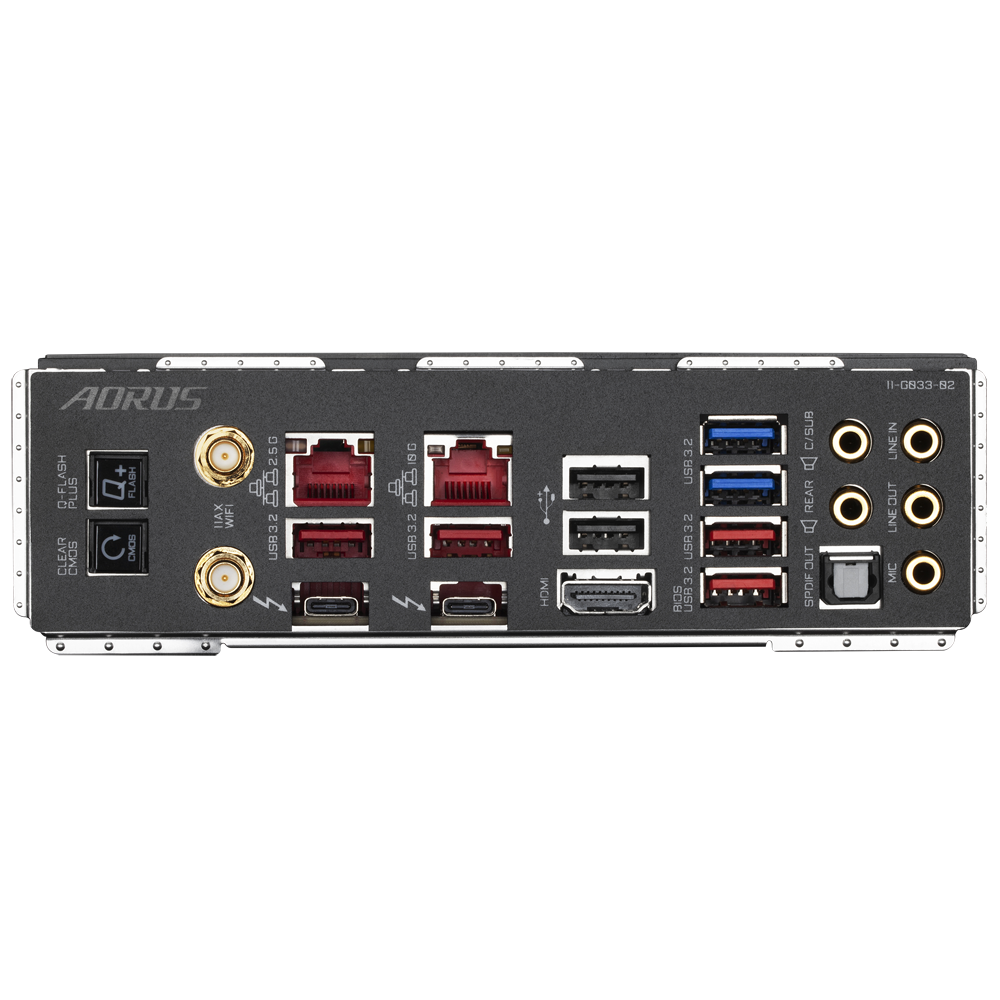

Back Panel Connectors | - 1 x Q-Flash Plus button
- 1 x Clear CMOS button
- 2 x SMA antenna connectors (2T2R)
- 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
- 4 x USB 3.2 Gen 2 Type-A ports (red)
- 2 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x HDMI port
- 2 x RJ-45 ports
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
|
I/O Controller | iTE I/O Controller Chip |
H/W Monitoring | - Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. - Noise detection
|
BIOS | - 2 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features | - Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost RGB Fusion Smart Backup System Information Viewer USB TurboCharger - Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
|
Bundled Software | - Norton Internet Security (OEM version)
- cFosSpeed
- XSplit Gamecaster + Broadcaster (12 months license)
|
Operating System | Support for Windows 10 64-bit |
Form Factor | ATX Form Factor; 30.5cm x 27.1cm |
Remark | - Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
|
