| ✓ Mã/Model: | AS-A320M/PRO4 |
| ✓ Xuất xứ: | Chính hãng |
| ✓ Bảo hành: | 36 tháng |
| ✓ Tình trạng | mới 100% |
THÔNG SỐ KỸ THUẬT:
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD A320 |
| Compatible Processors | Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
| Audio | HD Audio (8-channel) |
| Processor Socket | 1 x Socket AM4 |
| RAM Supported | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 2 x SATA-600, 1 x M.2, 1 x Ultra M.2 |
| LAN | Gigabit Ethernet |
| USB / FireWire Ports | 1 x USB-C + 4 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via headers) |
| Max Allocated RAM Size | 2 GB |
| Max RAM Size | 64 GB |
| Supported RAM | |
| Registered or Buffered | Unbuffered |
| Max Size | 64 GB |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Features | Dual channel memory architecture |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.) |
| Graphics | |
| Max Allocated RAM Size | 2 GB |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Network Controller | Realtek RTL8111GR |
| Features | |
| BIOS Type | AMI |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| BIOS Features | JumperFree, SMBIOS 2.3 support, UEFI BIOS |
| Hardware Features | ASRock Instant Boot, ASRock Instant Flash, 15µ Gold Contact, ASRock APP Charger, ASRock XFast LAN, ASRock Crashless BIOS, ASRock Internet Flash, Digi Power Design, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, 4K resolution support, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock RGB LED, 9 Phase Power Design, ASRock VR Ready, Premium 42A Power Choke, 2oz Copper PCB |
| Audio | |
| Audio Codec | Realtek ALC887 |
| Type | HD Audio (8-channel) |
| Compliant Standards | DirectX, High Definition Audio, Premium Blu-ray audio support |
| Miscellaneous | |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar |
| Included Accessories | I/O back plate, 2 x M.2 screws |
| Compliant Standards | Plug and Play, WHQL, FCC, EuP Ready, ErP Ready, ACPI 5.1 |
| Expansion / Connectivity | |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Internal Interfaces | 2 x USB 2.0 - header 1 x USB 3.0 - header 1 x serial - header 1 x audio - header |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 -connectors: 1 x M.2 PCIe 3.0 -connectors: 1 x Ultra M.2 |

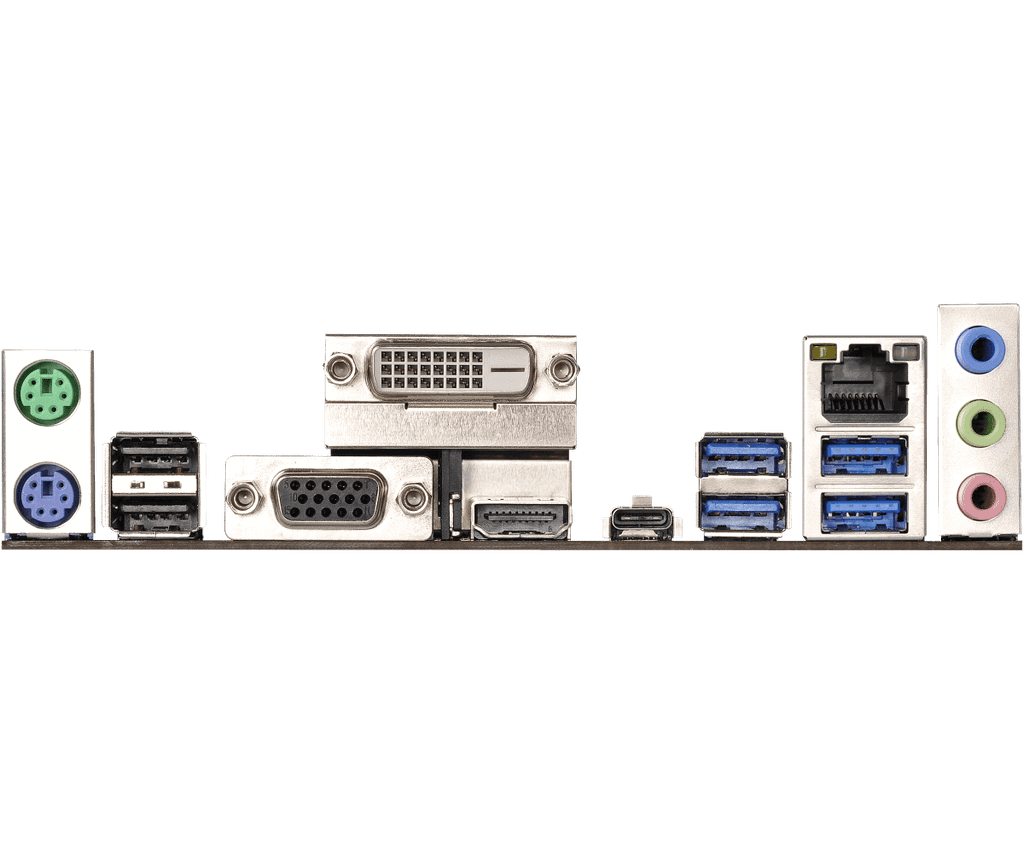

| Interfaces | 1 x PS/2 keyboard 1 x PS/2 mouse 1 x LAN (Gigabit Ethernet) 1 x VGA 1 x DVI-D 1 x HDMI 2 x USB 2.0 1 x USB-C 4 x USB 3.0 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 (x16/x8 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) 1 x PCIe 2.0 x16 (x4 mode (with AMD Ryzen CPU); x2 mode (with AMD 7th Generation A-series/Athlon CPU)) 1 x PCIe 2.0 x1 |
