Mainboard GIGABYTE X570 GAMING X - Socket AM4

Sản phẩm

Bo mạch chủ

Tên Hãng

Model

X570 GAMING X

CPU hỗ trợ

AMD

Chipset

X570

RAM hỗ trợ

4 x DDR4 memory slots, support up to 128GB

Khe cắm mở rộng

1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x16 slots

Ổ cứng hỗ trợ

6 x SATA 6Gb/s ports, 1 x M.2 slot

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

2 x system fan headers

1 x CPU cooler LED strip/RGB LED strip header

2 x addressable LED strip headers

2 x RGB LED strip headers

6 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

1 x Q-Flash Plus button

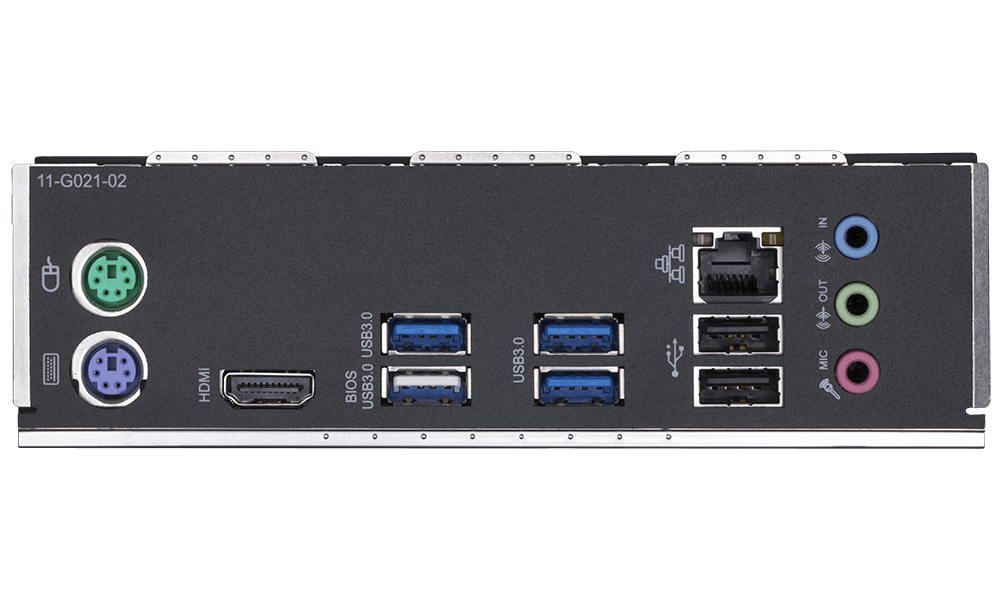

Cổng kết nối (Back Panel)

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

LAN / Wireless

Realtek^® GbE LAN chip (10/100/1000 Mbit)

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
