Hãng sản xuất | MSI |

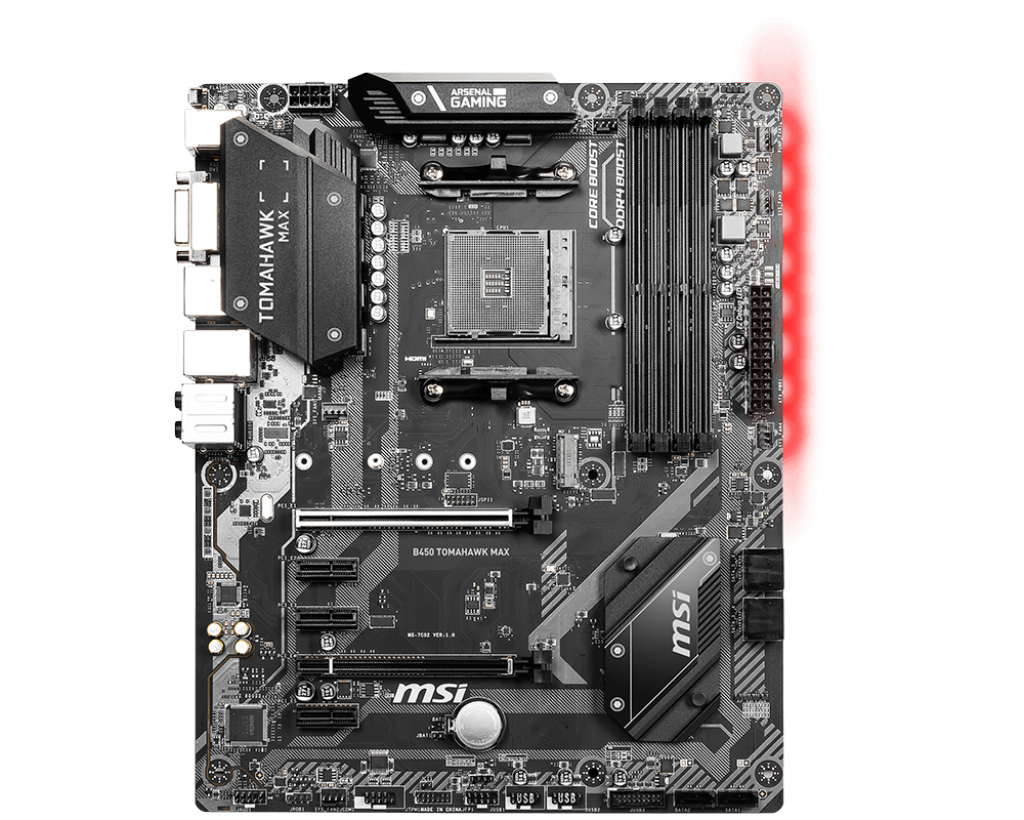

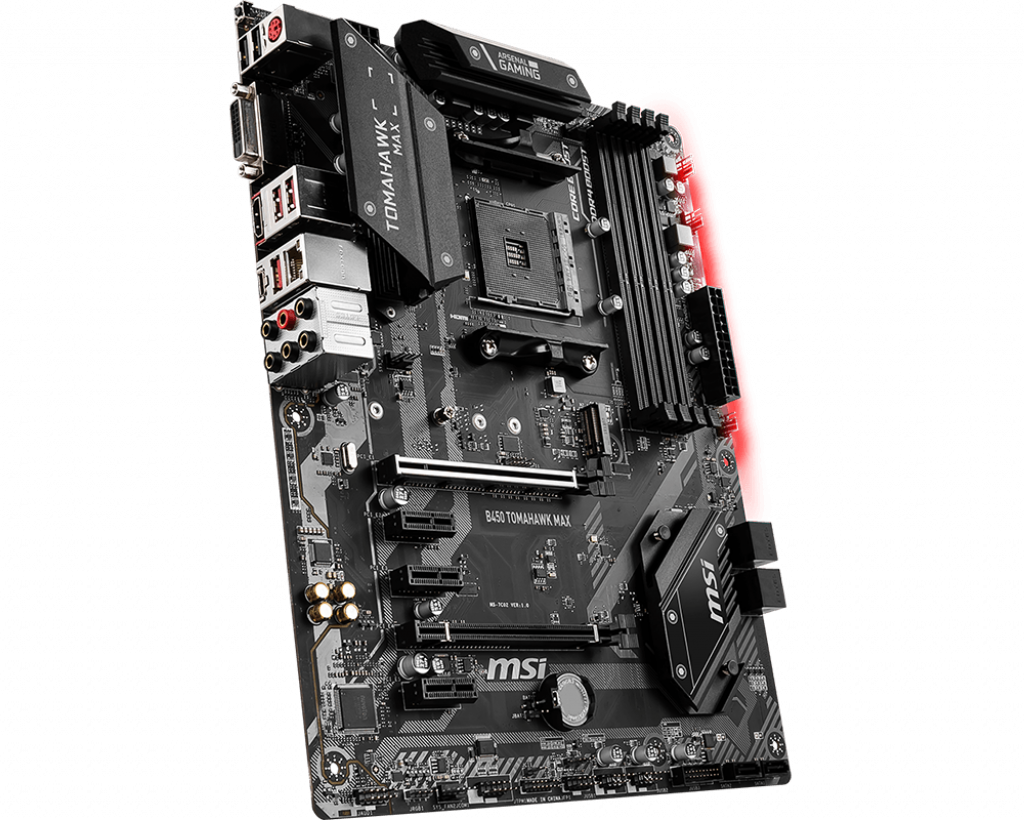

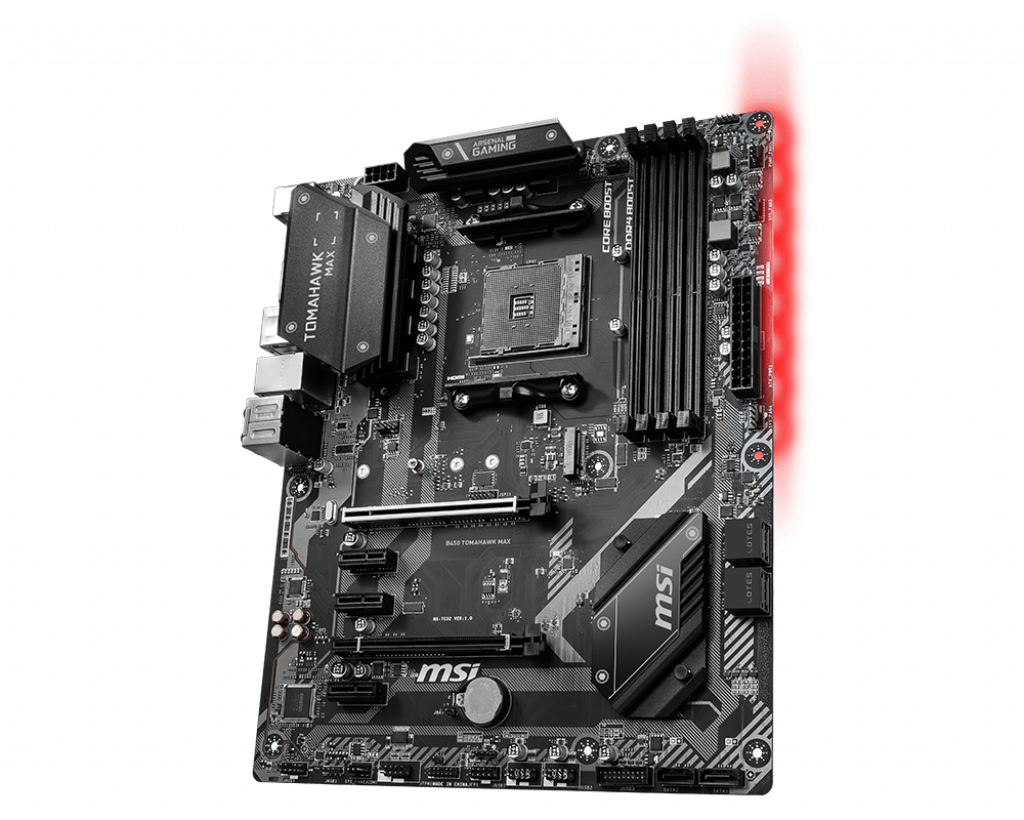

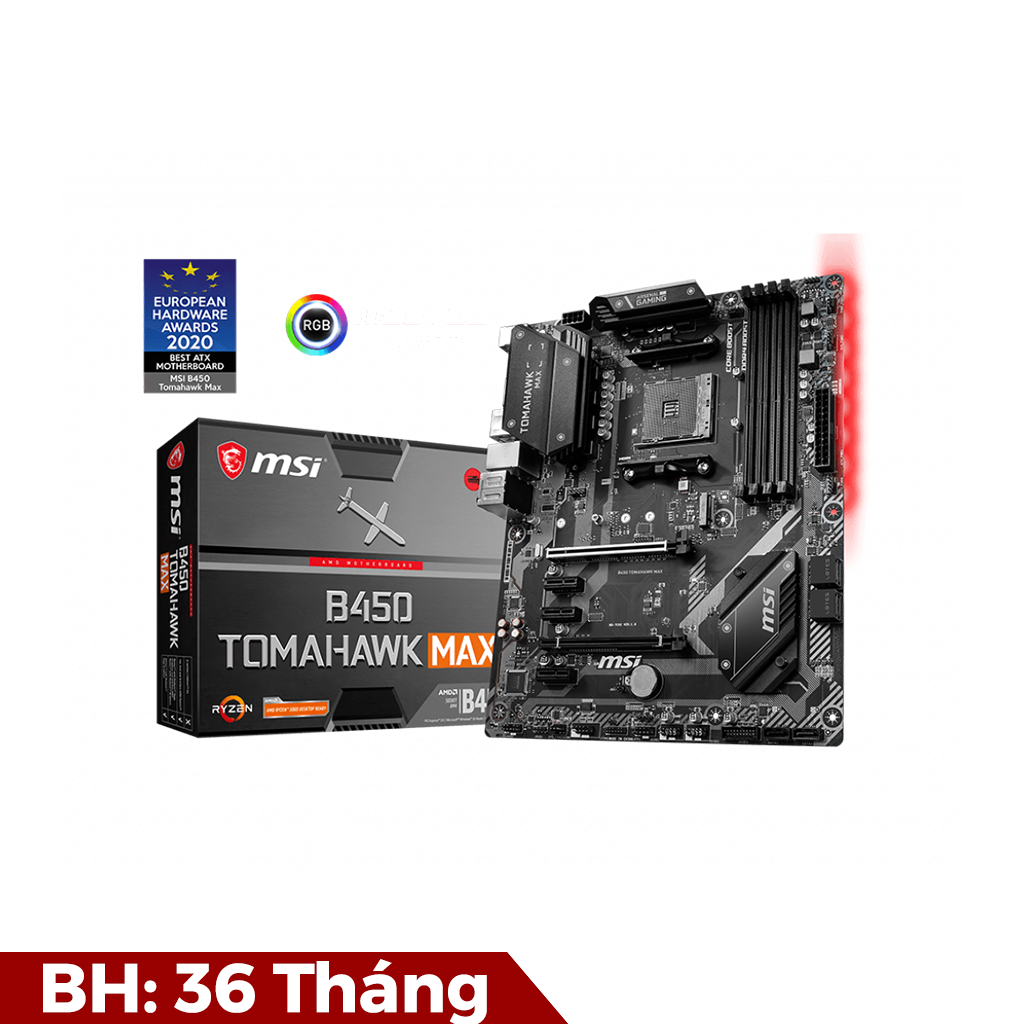

Mã sản phẩm | B450-TOMAHAWK |
CPU | Support AMD® Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4 |
Chipset | Intel® B450 Chipset |
Bộ nhớ trong | - 4 x DDR4 memory slots, support up to 64GB
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
- Dual channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports ECC UDIMM memory (non-ECC model)
|
Khe mở rộng | - 1 x PCIe 3.0 x16 slot (PCI_E1)
- Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
- Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
- 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
- 3 x PCIe 2.0 x1 slots1
|
Cổng hiển thị | - 1 x DVI-D port, support a maximum resolution of 1920×1200@60Hz1
- 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160@30Hz, 2560×1600@60Hz1
|
Lưu trữ | AMD® CPU- 2 x SATA 6Gb/s ports1
- 1 x M.2 slot (Key M)1
- Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
AMD® B450 Chipset- SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
|
Âm Thanh | Realtek® ALC892 Codec- 7.1-Channel High Definition Audio
|
Mạng |
- 1 x Realtek® 8111H Gigabit LAN controller
|
Kết nối trong | - 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump-fan connector
- 4 x 4-pin system fan connectors
- 1 x TPM module connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Serial Port connector
- 1 x Clear CMOS jumper
- 2 x 5050 RGB LED strip 12V connectors
|

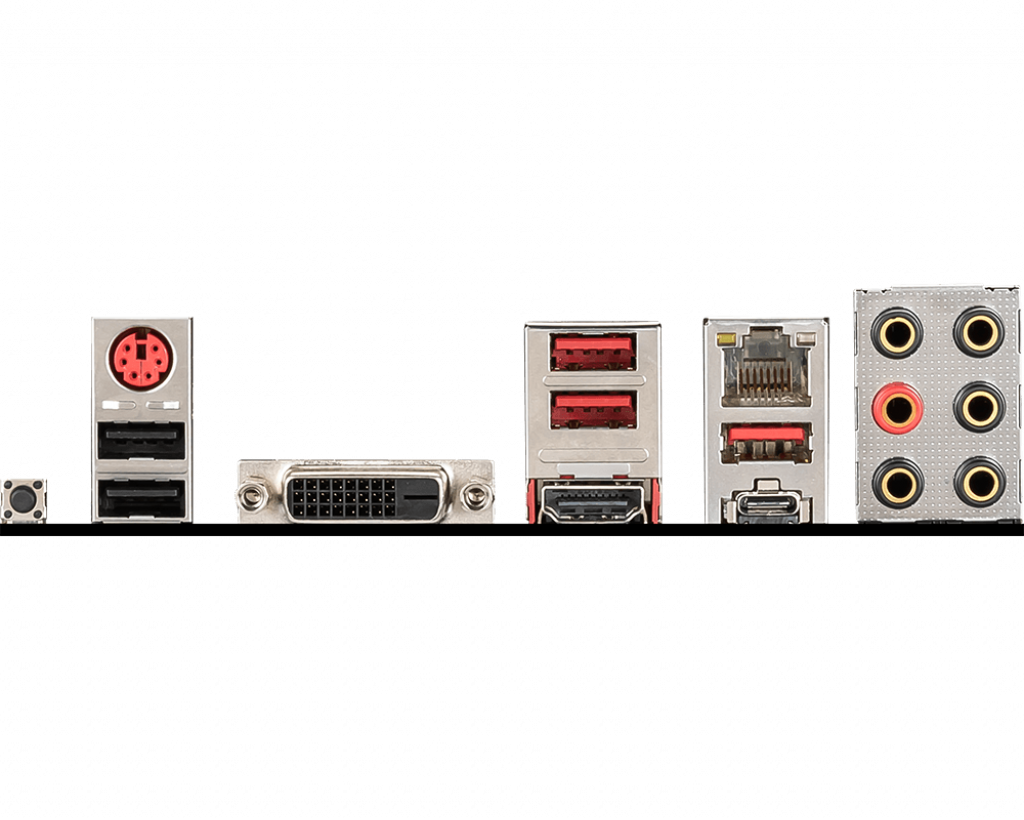

Kết nối ngoài | - BIOS FLASHBACK+ Button
- PS/2 Combo Port
- USB 3.1 Gen1
- LAN Port
- HD Audio Connectors
- USB 2.0 Port
- DVI-D Port
- HDMI Port
- USB 3.1 Gen2 Type A+C
|
Kích thước | - 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
|
