Compatibility | Intel LGA1700/1200/2066/2011/1151/1150/1155/1156 AMD AM4 |
TDP | 180W |
Overall Dimension | 120×75×153mm (L×W×H) |

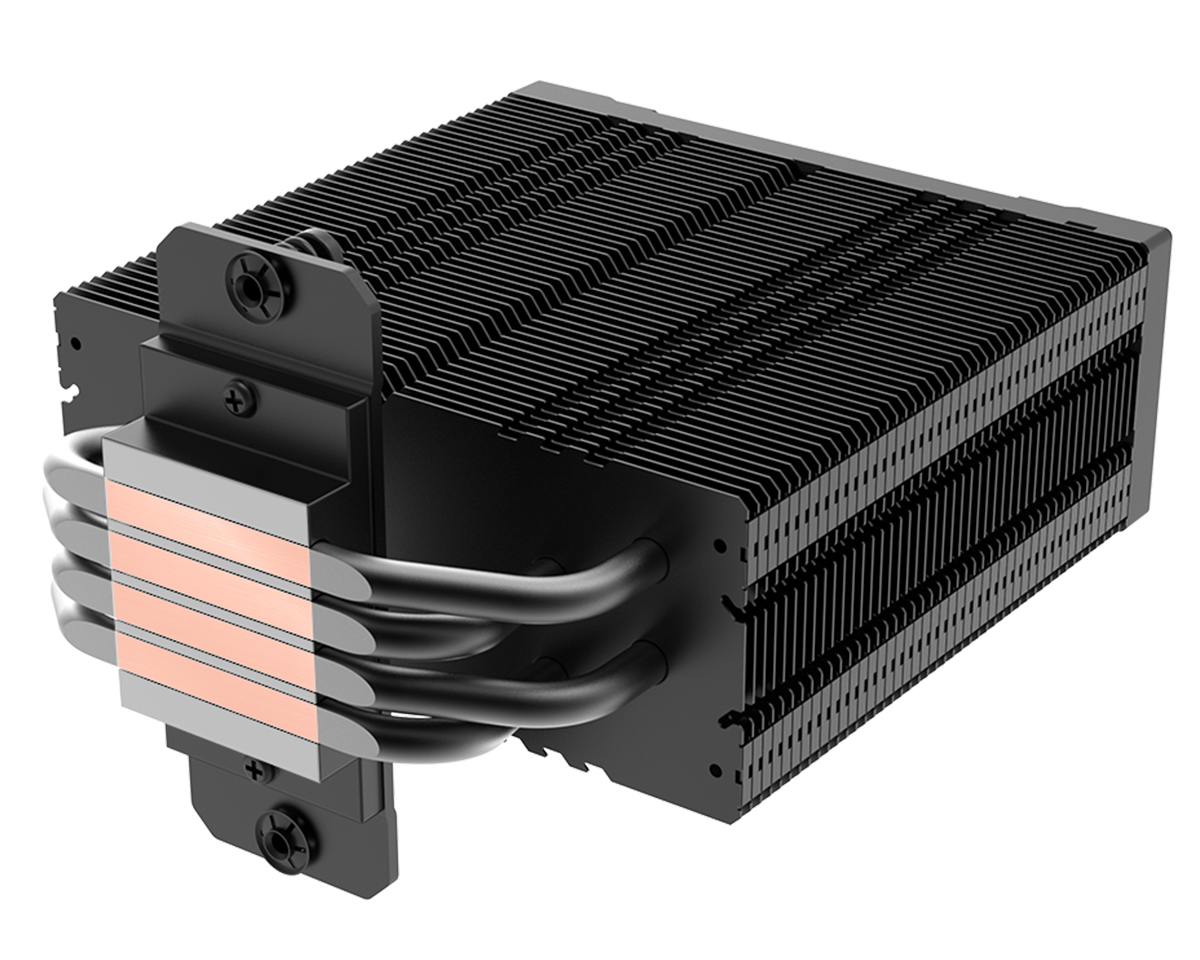

Heatsink Material | 4×Ф6mm Heatpipe(Direct Touch)+Aluminum Fin |
Weight | 830g |
Fan Dimension | 120×120×25mm |
Fan Speed | 500±200~1500±10%RPM(PWM)(ARGB) |
Max. Air Flow | 68.2CFM |
Max. Static Pressure | 1.87mmH2O |
Noise | 13.8-30.5dB(A) |
Rated Voltage | 12VDC (4pin PWM) / 5V (3pin ARGB) |
Operating Voltage | 10.8~13.2VDC |
Started Voltage | 7VDC |
Rated Current | 0.25A |
Power Input | 3W |
Bearing Type | Hydraulic Bearing |
Connector | 4Pin PWM / 5V 3Pin ARGB |
