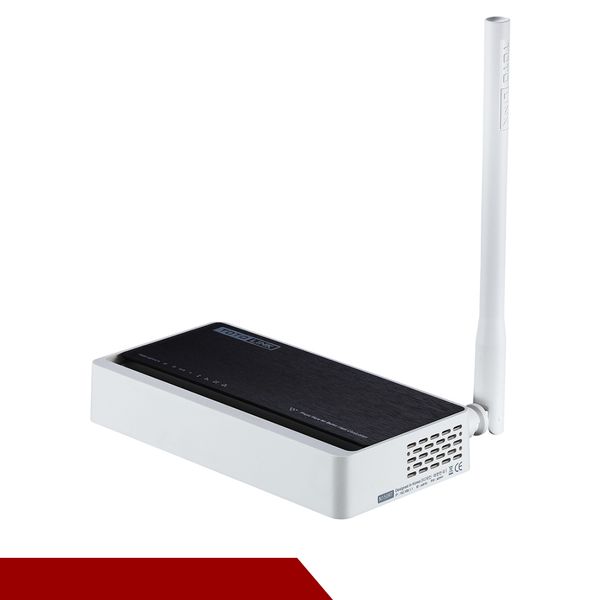

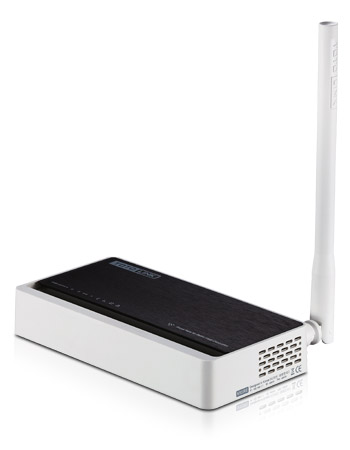

N150RT is a wireless router which complies with 802.11n standard and delivers up to 150Mbps wireless transmission rate. The high performance antenna ensures stable Wi-Fi signal and wide coverage, allowing multiple Wi-Fi devices to share Internet access simultaneously. Besides, it supports the most advanced WPA/WPA2 encryption method to prevent unauthorized access.
Wireless N Speed
N150RT complies with wireless 11n standard and delivers Wi-Fi speed up to 150Mbps, satisfying all internet activities like network commnication,online gaming and video streaming.
With one high gain antenna, you are able to share stable Wi-Fi on different devices at the same time.
Enjoy Your IPTV
Simply set up IPTV related information on N150RT's Easy Setup page, you can enjoy smooth IPTV and fast Wi-Fi simultaneously.
For Wi-Fi devices first connected to N150RT, the Log In page will show up automatically, configuration has never been so easier.
Multiple Networks Available
More than one Wi-Fi networks can be added to provide secure Wi-Fi access for guest sharing your home or office network.
The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to secure Wi-Fi connection and avoid any unauthorized use.
Wi-Fi Schedule helps parents to set up time schedule for Wi-Fi network access, effectively preventing children caught in the Web, better for parental control.
N150RT supports IPv6 protocol for higher security and wider IP address range.
- Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
- Up to 150Mbps data rate for Wi-Fi network.
- Supports DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
- Connects to secure network easily and fast using WPS.
- Supports IP, Port, MAC, URL filtering and Port Forwarding.
- QoS: Bandwidth Control based on IP/MAC.
- Multi-SSID allows user to create multiple SSIDs according to their needs.
- Supports VLAN function for IPTV and other internet services.
- Universal repeater and WDS function for easy Wi-Fi extension.
- Supports TR-069 protocol for remote centralized management
Thông số kỹ thuật:
|Interface ||4 *10/100Mbps LAN Ports |
| ||1 *10/100Mbps WAN Port |
|Power Supply ||9V DC/0.5A |
|Antenna ||1 *5dBi fixed antenna |
|Button ||1 *RST·WPS Button, 1 *Power ON/OFF Button |
|LED Indicators ||1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN |
|Dimensions(L x W x H) ||5.8 x 3.0 x 1.0 in. ( 147.5 x 76 x 25 mm) |
|Standards ||IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|RF Frequency ||2.4~2.4835GHz |
|Data Rate ||802.11n: Up to 150Mbps |
| ||802.11g: Up to 54Mbps (dynamic) |
| ||802.11b: Up to11Mbps (dynamic) |
|EIRP ||< 20dBm |
|Wireless Security ||64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
|Reception Sensitivity ||135M: -65 dBm@10% PER |
| ||54M: -68 dBm@10% PER |
| ||11M: -85 dBm@8% PER |
| ||6M: -88 dBm@10% PER |
| ||1M: -90 dBm@8% PER |
|Operation Mode ||Wireless ISP Client Router |
| ||Wireless Client |
| ||Repeater(Range Extender) |
| ||Router |
| ||Bridge with AP |
| ||Client |
|Network ||VLAN, IPv6 |
|WAN Type ||DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP(dual access) |
|Wireless Functions ||Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS |
|Schedule ||Reboot Schedule, Wireless Schedule |
|Firewall ||MAC Filtering, IP Filtering, Port Filtering, URL Filtering, |
|Management ||Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control |
|Package Contents ||N150RT Wireless Router *1 |
| ||Power Adapter *1 |
| ||Ethernet Cable *1 |
| ||Quick Installation Guide *1 |
|Environment ||Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) |
| ||Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) |
| ||Operating Humidity: 10%~90% non-condensing |
| ||Storage Humidity: 5%~90% non-condensing |
