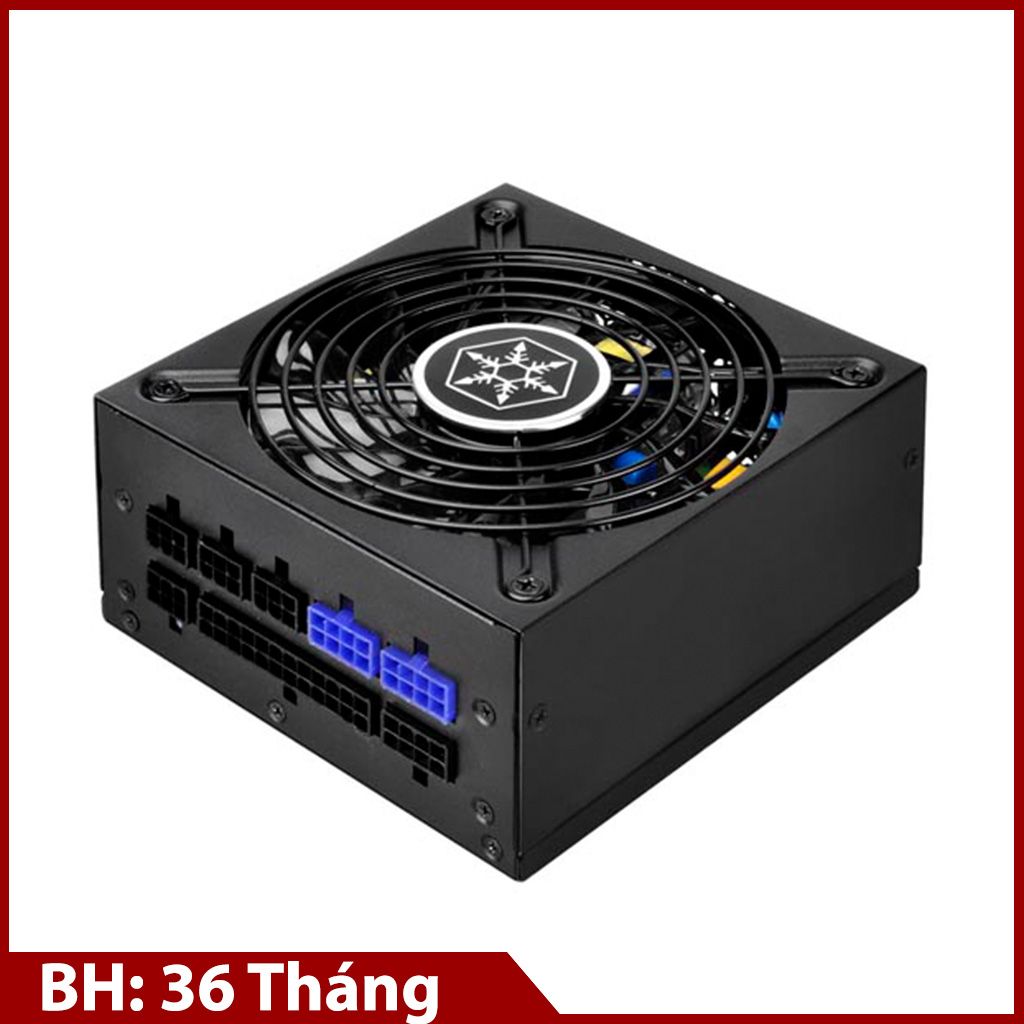

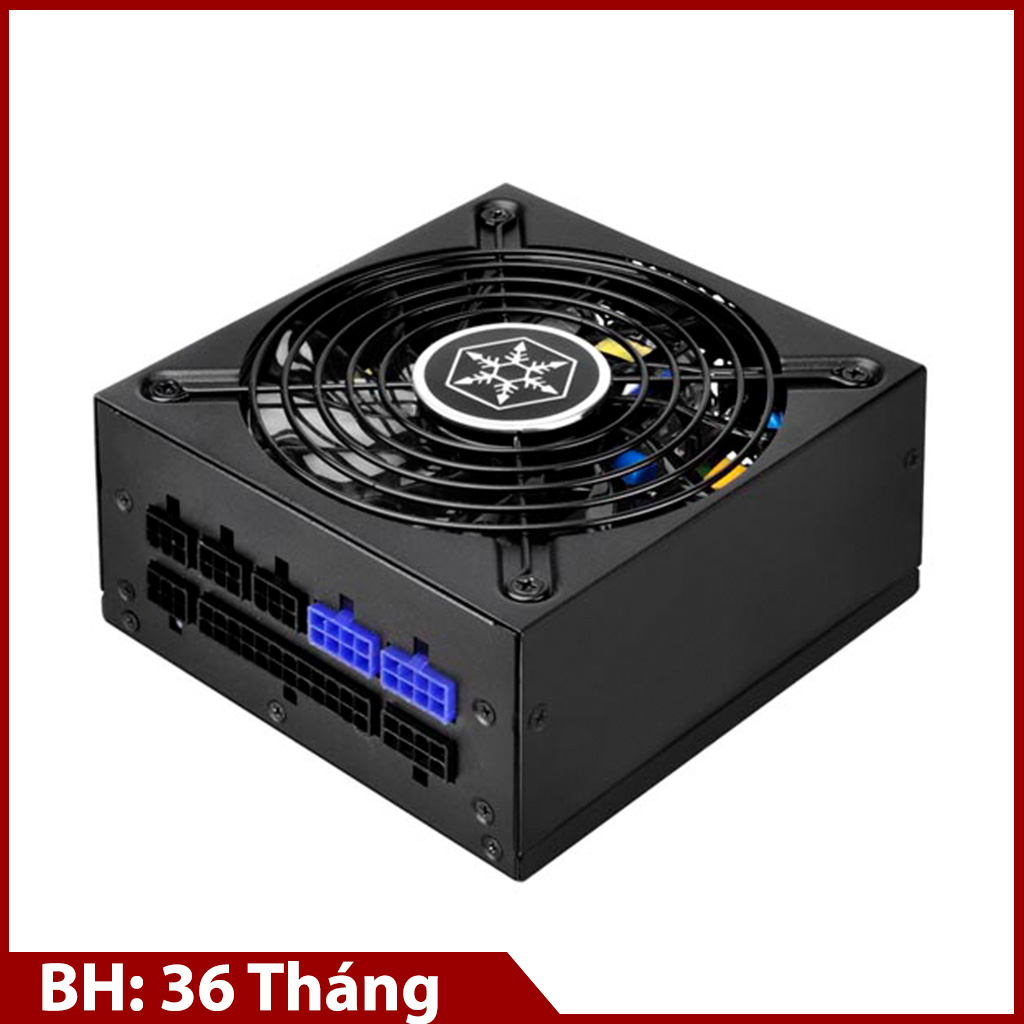

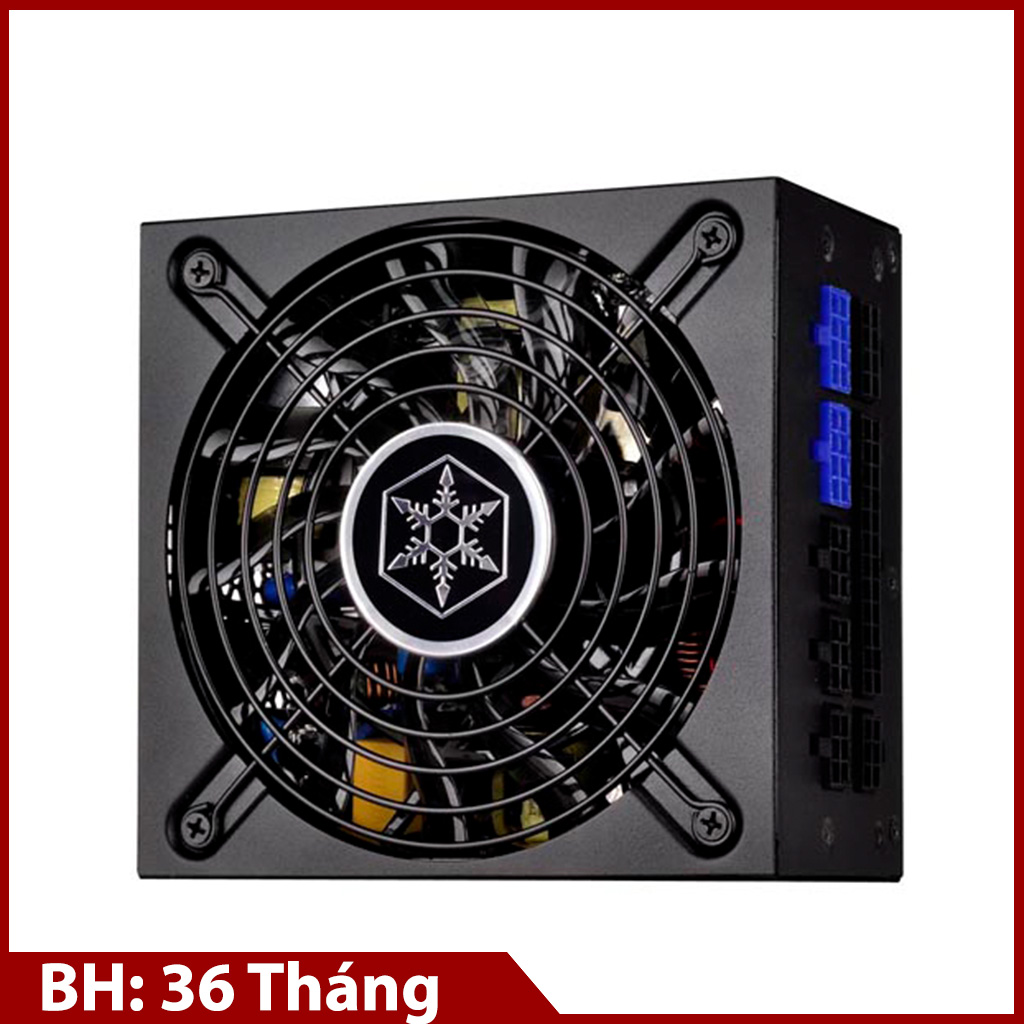

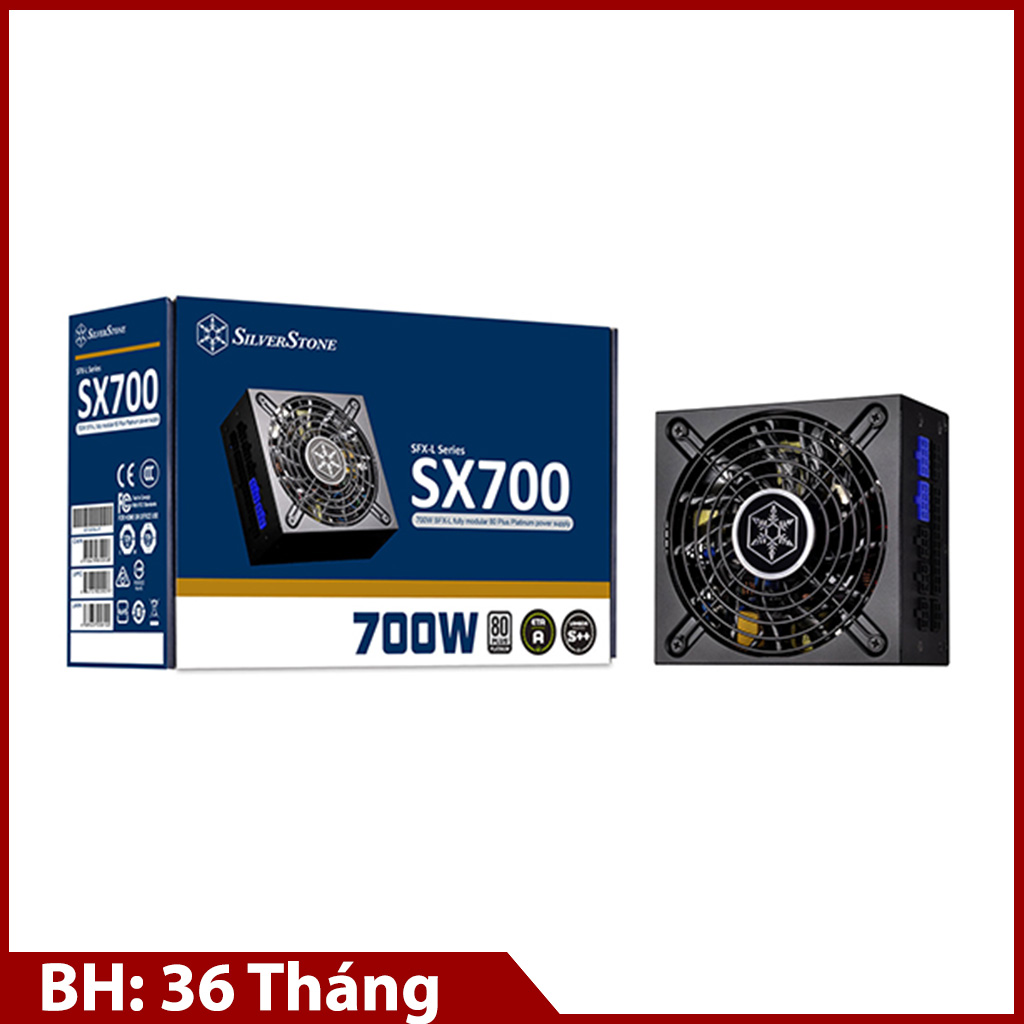

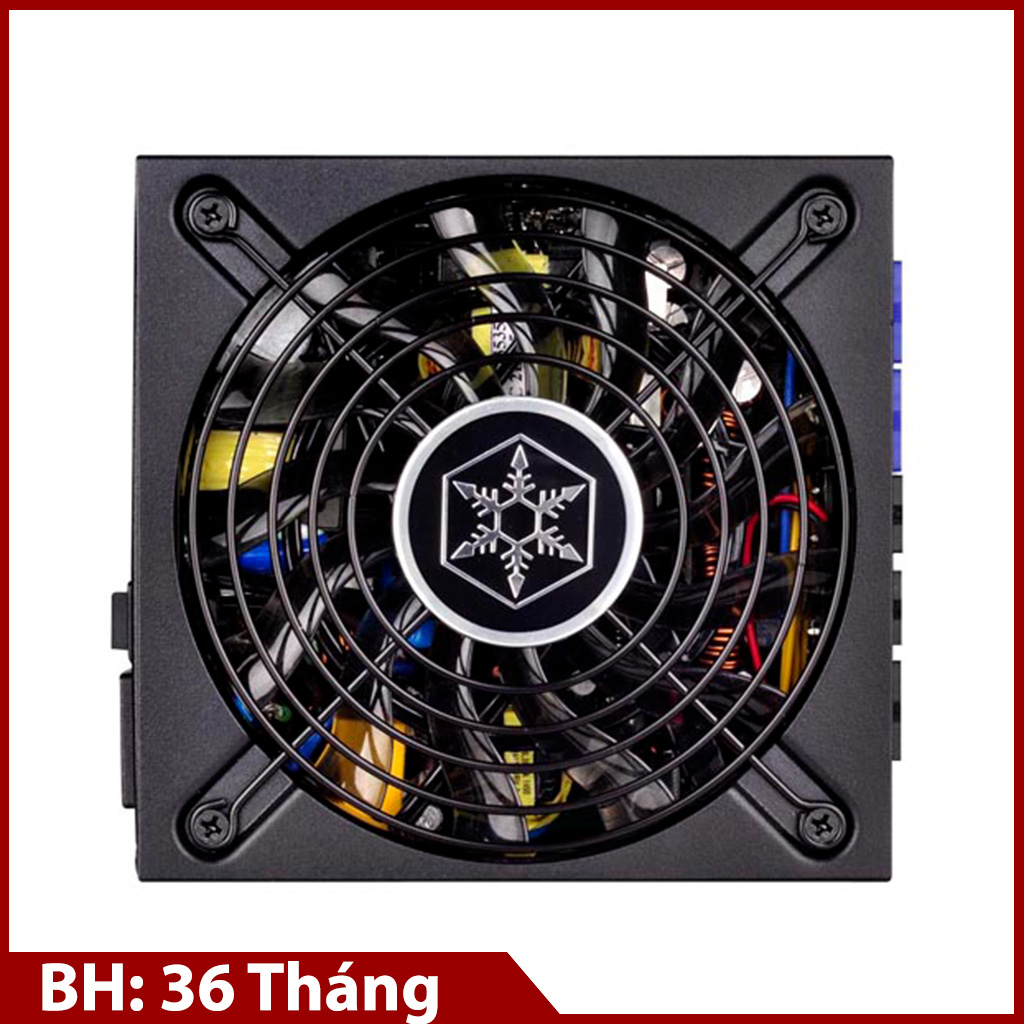

Nguồn SilverStone SX700-LPT SFX 80 Plus Platinum - ITX

Nguồn SilverStone SX700-LPT SFX 80 Plus Platinum - ITX

ĐẶC ĐIỂM NỔI BẬT

Model No.	SST-SX700-LPT
Max. DC Output	700W (Peak 750W)
Power density	678W per liter

	+3.3V	+5V	+12V	+5VSB	-12V
Max.(Amps)	22A	22A	58.4A	3.0A	0.3A
Peak (Amps)	/	/	/	/	/
Min.(Amps)	0A	0A	0A	0A	0A
Range (%)	±3%	±3%	±3%	±5%	±10%
Line Reg.(%)	±1%	±1%	±1%	±1%	±1%
Ripple(mVp-p)	50mA	50mA	120mV	50mV	120mV

Color

Black（Lead-Free Paint）

Combined +3.3V & +5V

120W

Combined +12V

700W

Input Voltage

90V ~ 264V

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.95 at full load）

Efficiency

89% ~ 92% at 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection

Connectors

1 x 24 / 20-Pin motherboard connector（300mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（400mm）
2 x 8 / 6-Pin PCIE connector（400mm / 150mm）
2 x 8 / 6-Pin PCIE connector（550mm / 150mm）
6 x SATA connector（"300mm / 200mm / 100mm" x 2）
3 x SATA connector（600mm / 150mm / 150mm）
3 x 4-Pin Peripheral connector（300mm / 200mm / 200mm）
1 x 4-Pin Floppy adapter connector（100mm）

Cooling System

Single 120mm FDB* silent fan

Form factor

SFX-L

Noise Level

0 ~ 36 dBA

Dimension

125 mm (W) x 63.5 mm (H) x 130 mm (D)
4.92" (W) x 2.5" (H) x 5.12" (D)

Weight

1.68 Kg

Certification

80 PLUS Platinum
